Matched to Real Operating Conditions
Industrial Flooring
Mezzanines, work floors and maintenance aisles must carry racking, equipment, forklifts and people — while light, air and sprinkler water still pass. Grating industrial flooring delivers all of it, with welded and heavy-duty panels detailed to your support grid and traffic lanes.
The Challenge
What This Application Demands
Solid floors block light, ventilation and sprinkler water — often complicating fire design
Forklift and pallet-truck traffic punishes under-specified flooring
Retrofit mezzanines need light panels that install over existing structures
Spills, swarf and small parts should not accumulate underfoot
Requirements
Specification Requirements
Confirm these points before ordering — they define the grating.
Load
- Uniform storage loads plus concentrated rack post and equipment loads
- Forklift aisles need wheel loads and traffic frequency stated
- Support span in the bearing bar direction governs bar size
- Specification confirmed against span, load type and support conditions before quotation
Traffic & surface
- Plain surface for dry indoor traffic; serrated where floors get wet or oily
- Compound grating with a checker plate top where small items must not fall through
- Closer bar spacing where heels or small-wheeled trolleys run
Services & layout
- Open grid passes sprinkler water, light and ventilation
- Cut-outs for conveyors, columns, stairs and services, fully banded
- Panel layout drawings drive numbering and installation sequence
Finish
- Mill finish or painted carbon steel for dry indoor floors
- Hot-dip galvanized for humid, washdown or semi-outdoor areas
Gratings
Recommended Grating Families
Welded Steel Grating
Press-welded bearing bars and cross bars — the most common, economical grating for platforms, walkways and trench covers.
View product
Heavy Duty Steel Grating

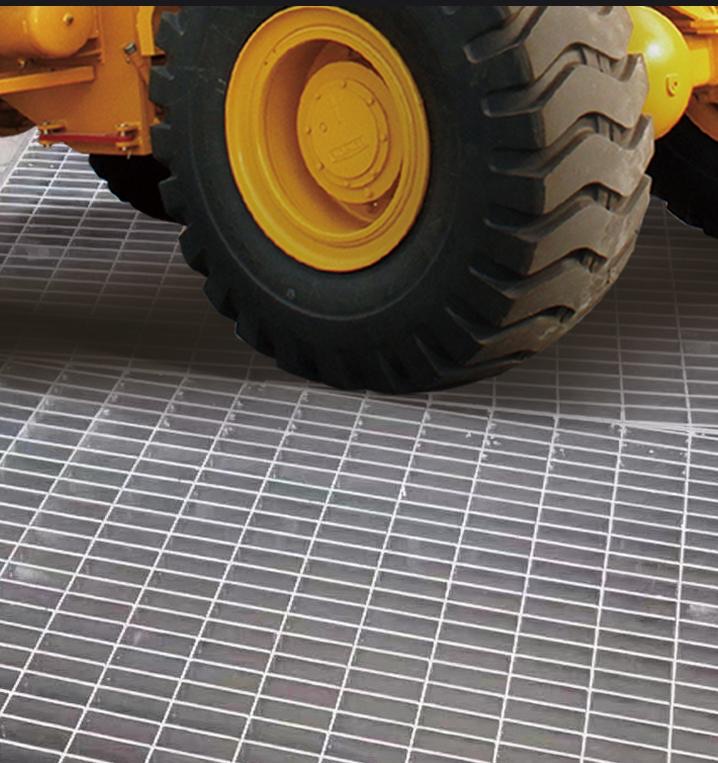

Heavy bearing bars for forklift, truck and equipment loads — engineered against span and support conditions.
View product
Galvanized Steel Grating
Hot-dip galvanized after fabrication for long-term corrosion protection on outdoor platforms, walkways and trench covers.
View productMaterial & finish selection
- Dry indoor mezzanines: mill finish or painted Q235 carbon steel — the economical base.
- Forklift lanes and loading zones: heavy-duty welded grating, with Q355 sections where spans demand it.
- Humid or washdown areas: hot-dip galvanized after fabrication.
- Compound grating — checker plate welded over the panel — where a solid, small-object-proof surface is needed; note it adds weight and cost and reduces drainage and ventilation.
Inquiry
What to Send Us
These parameters let us confirm the specification and quote within 24 hours.
- Floor layout drawing with the support steel grid
- Uniform and concentrated loads, including rack post loads
- Forklift or trolley traffic: wheel loads and routes
- Support span in the bearing bar direction
- Cut-out schedule for columns, conveyors and stairs
- Finish preference: mill, painted or galvanized
- Quantity in square meters, plus banding and toe plate requirements
Installation
Installation Notes
- Panels tagged to the layout drawing install in numbered sequence — site cutting is rarely needed.
- Saddle clips keep floor panels removable above services; welding suits permanent zones.
- Clip fixing avoids coating damage on galvanized floors.
- Toe plates at open mezzanine edges stop items being pushed off.
Gallery

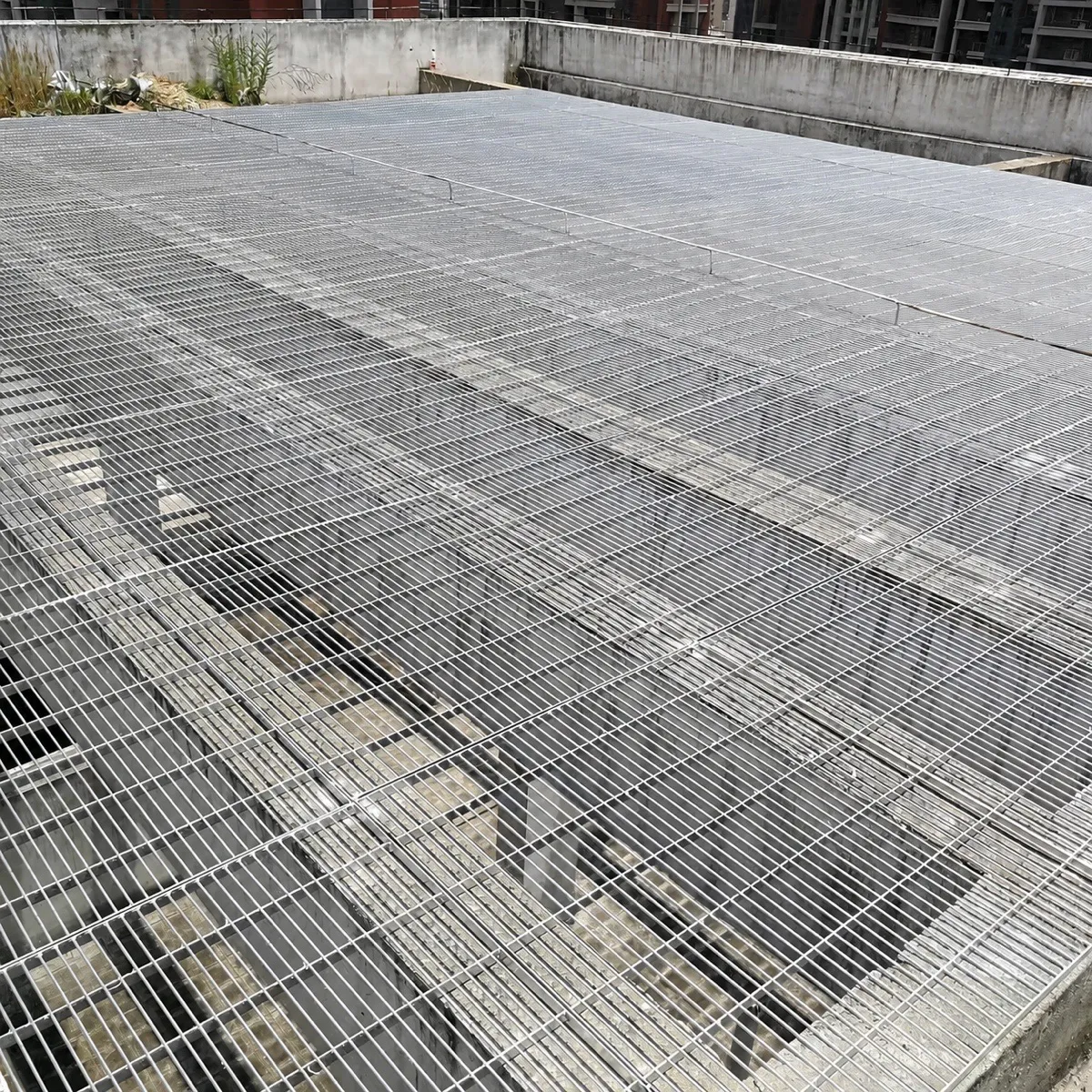

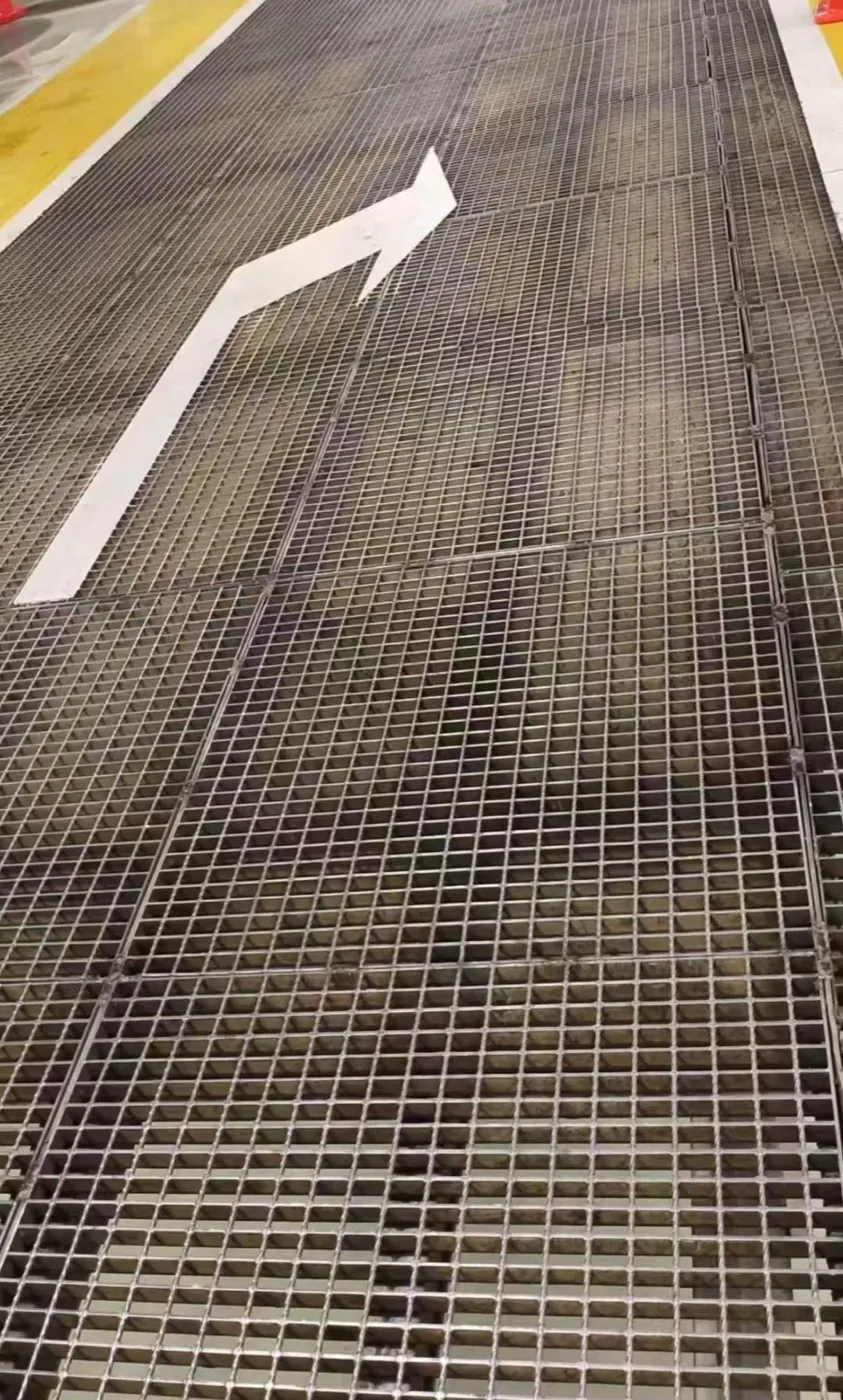

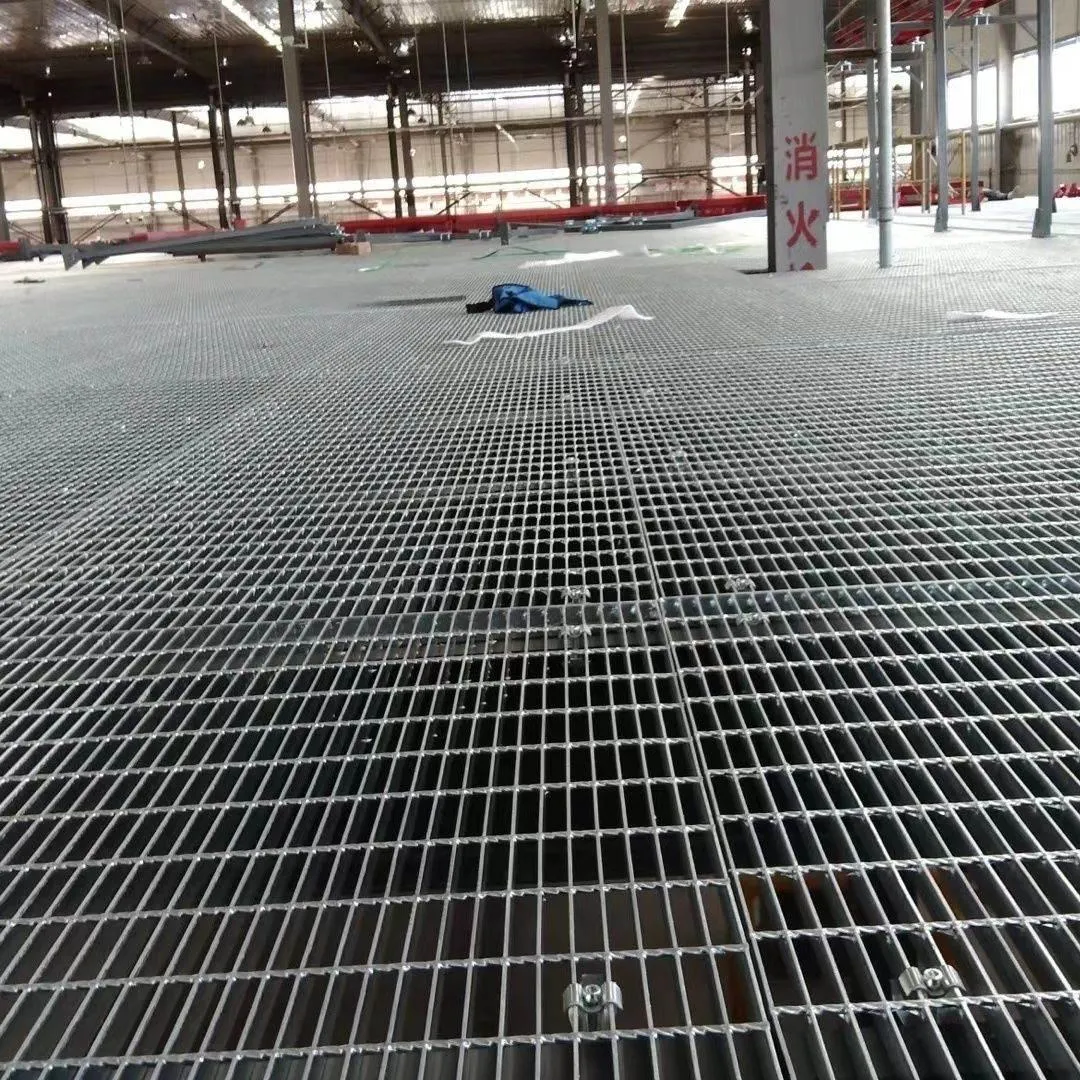

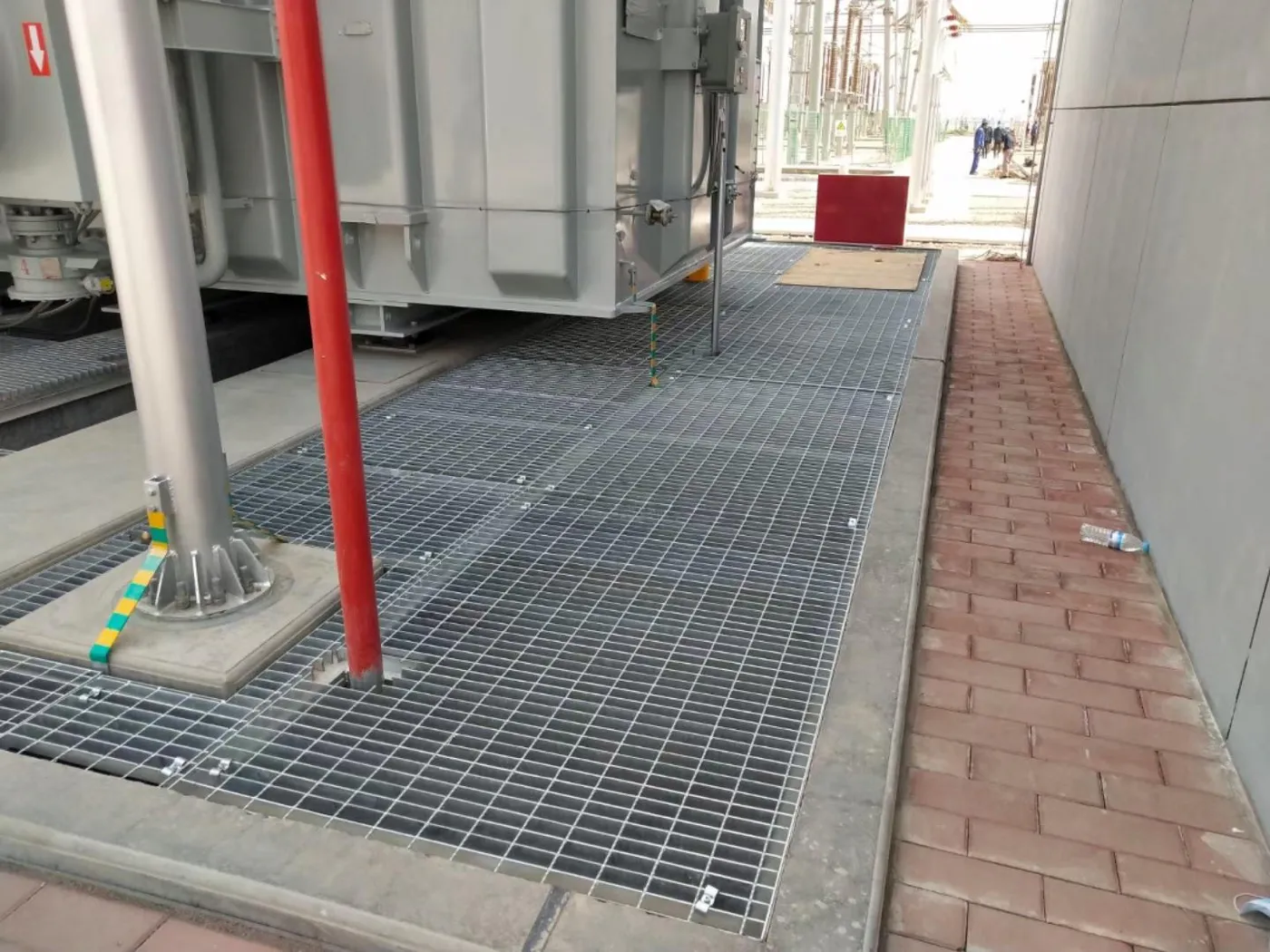

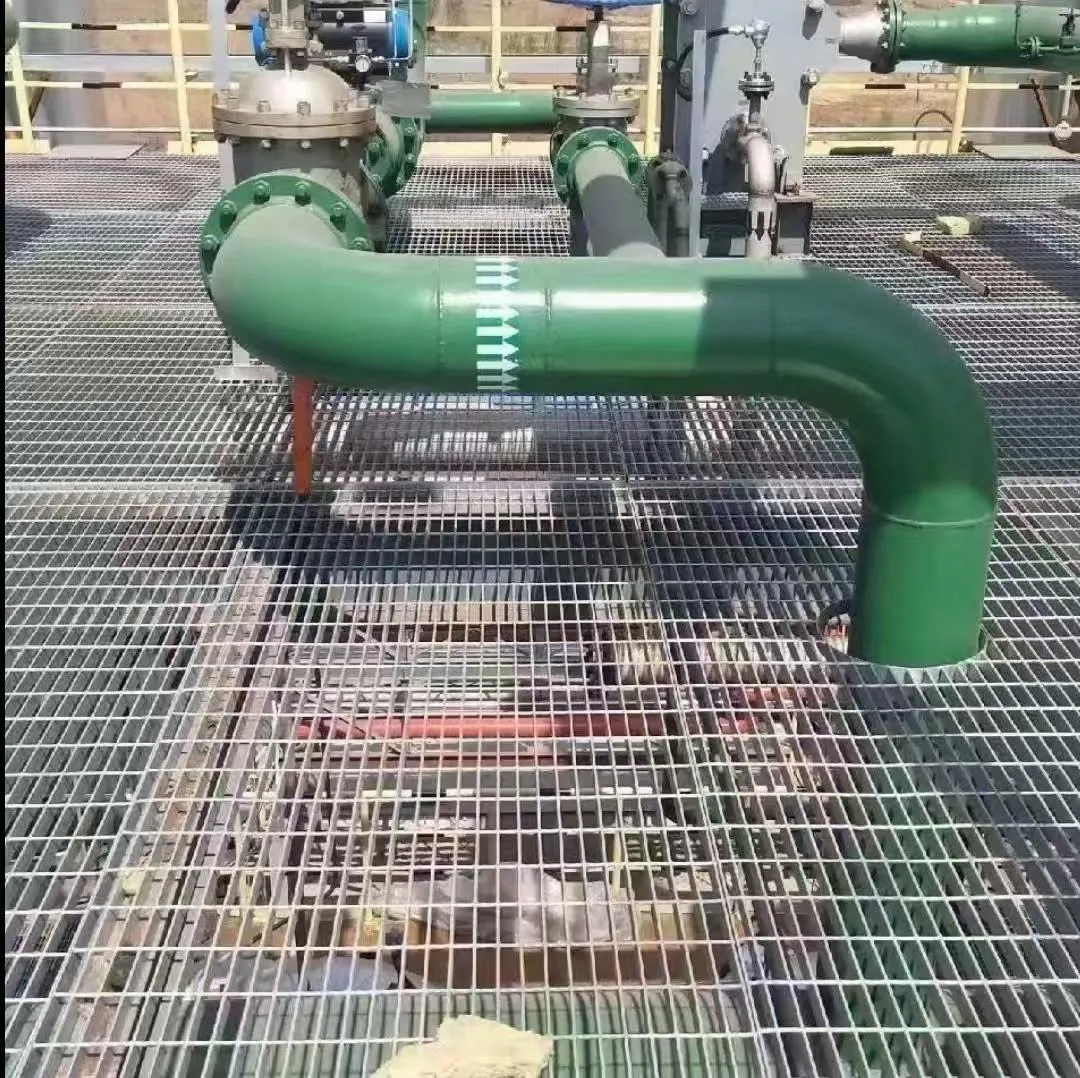

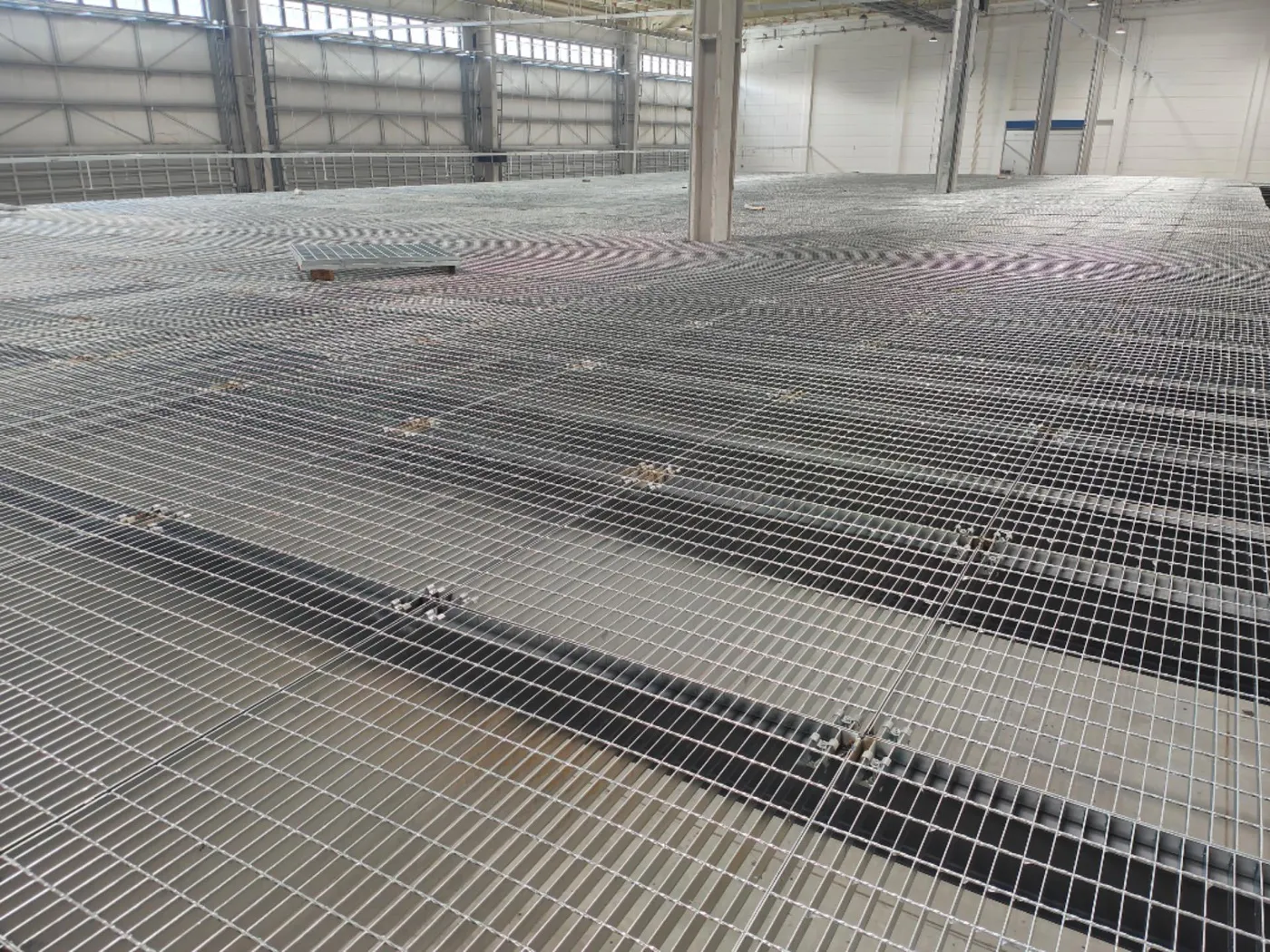

On Site
FAQ
Industrial Flooring FAQs
Can grating flooring carry pallet racks?
Is grating suitable over sprinkler systems?
Can forklifts run on grating floors?
What is compound grating and when is it worth it?
What finish suits indoor floors?
How are floor panels fixed?
Send Your Drawings, Get a Confirmed Specification
Complete inquiries are typically answered within 24 hours during business hours.
