Engineered Around Your Load & Span
Custom Irregular Grating

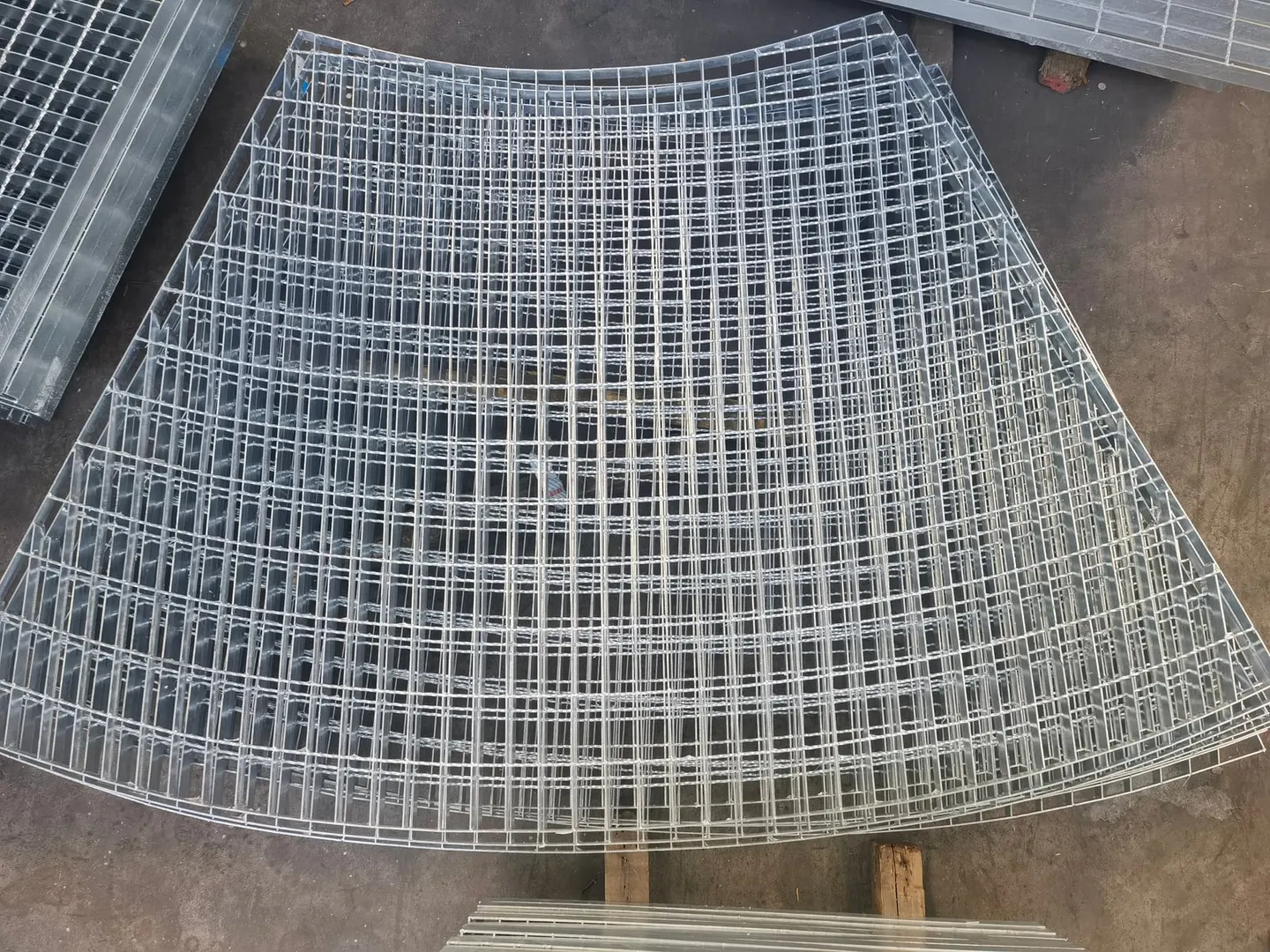

Custom irregular grating turns a layout drawing into numbered panels around columns, pipes, vessels, curved edges and non-square boundaries. The page is the route for work that does not fit a standard panel: send the geometry, span direction and operating requirements so feasibility can be confirmed before pricing.

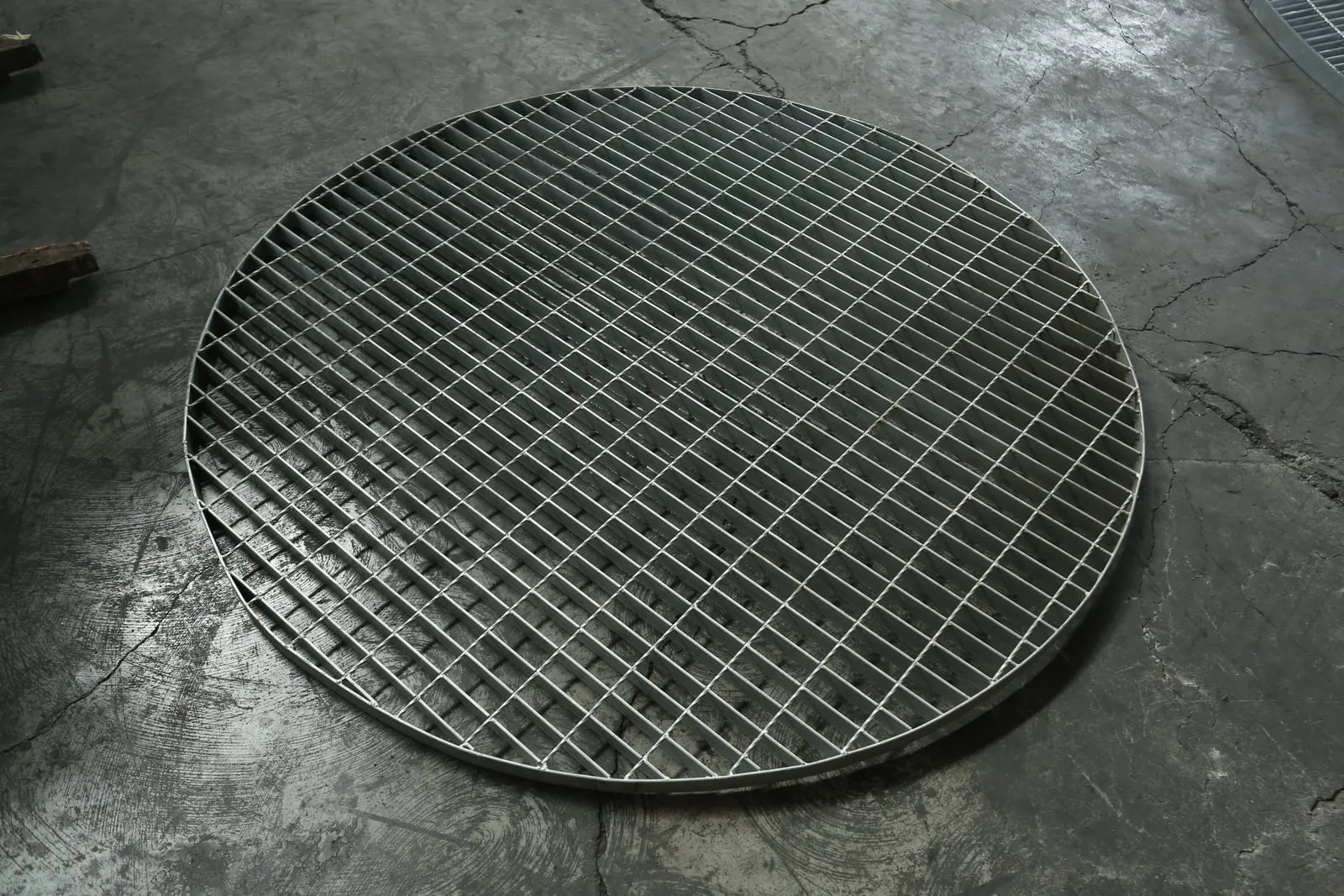

- Notches, cut-outs, curved edges and non-rectangular panels
- Drawing review before fabrication and coating
- Panel numbering matched to the approved layout
- Minimum openings and edge details confirmed per project
From layout geometry to panel numbers
Custom fabrication starts with the support layout and bearing-bar direction, then divides the area into panels that can be fabricated, coated, packed, handled and installed. Every notch, opening, curved edge and boundary needs a clear dimension and reference point; site-trim assumptions are avoided wherever accurate drawings are available.
The review also sets practical limits. Narrow strips need enough structure for banding, openings need clearance for fabrication and the selected coating process, and large or awkward shapes may be split into smaller numbered panels. These limits are confirmed on the drawing rather than hidden inside a standard-panel table.
Applications
Where Custom Irregular Grating Is Used
Industrial Platform Grating
Open-grid flooring for chemical plants, equipment platforms and mezzanines — strength, drainage and ventilation in one panel.
View application
Walkway & Catwalk Grating
Safe, drained, ventilated walkways for photovoltaic arrays, pipe racks, tank farms and roof access routes.
View applicationVariants
Recommended Types

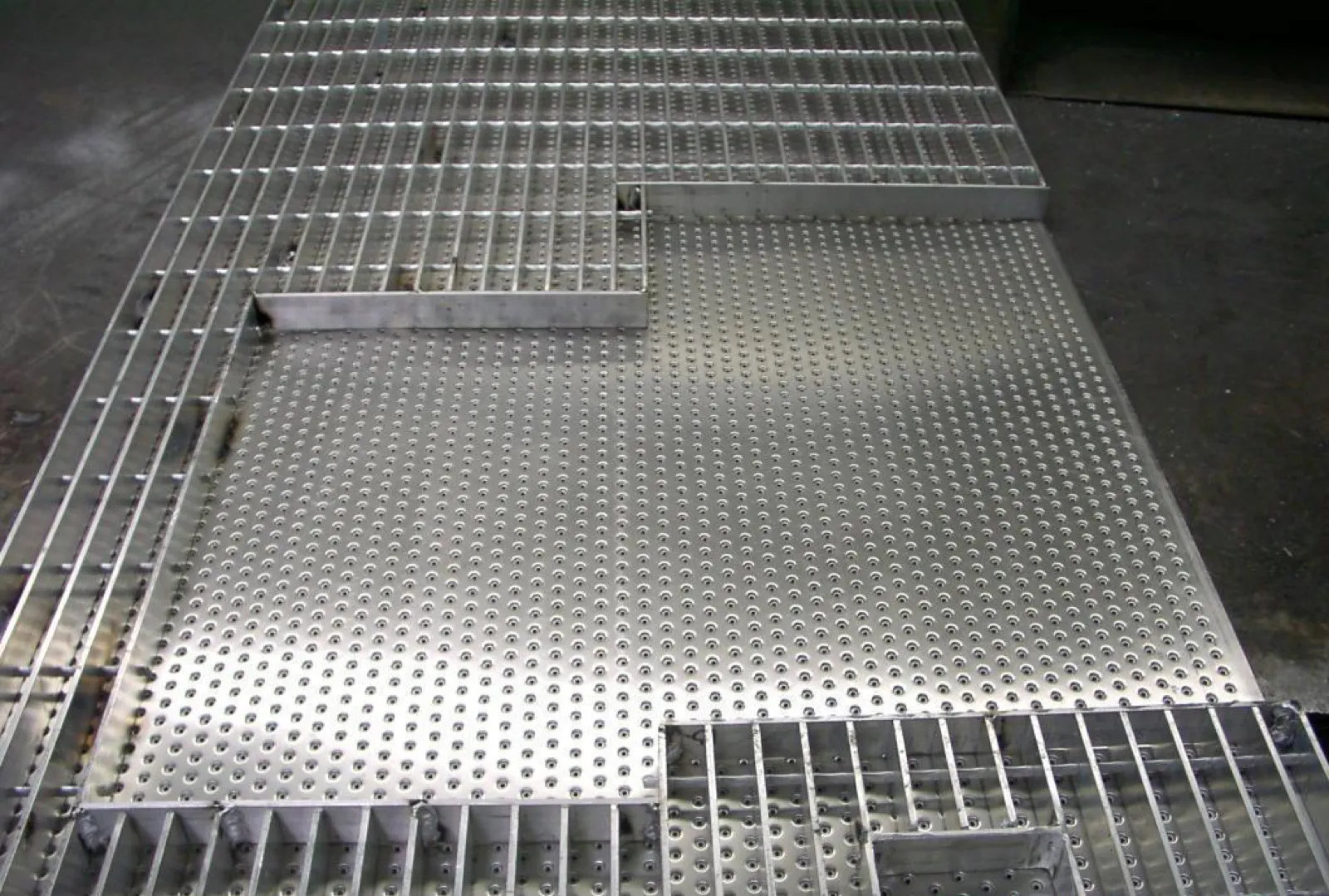

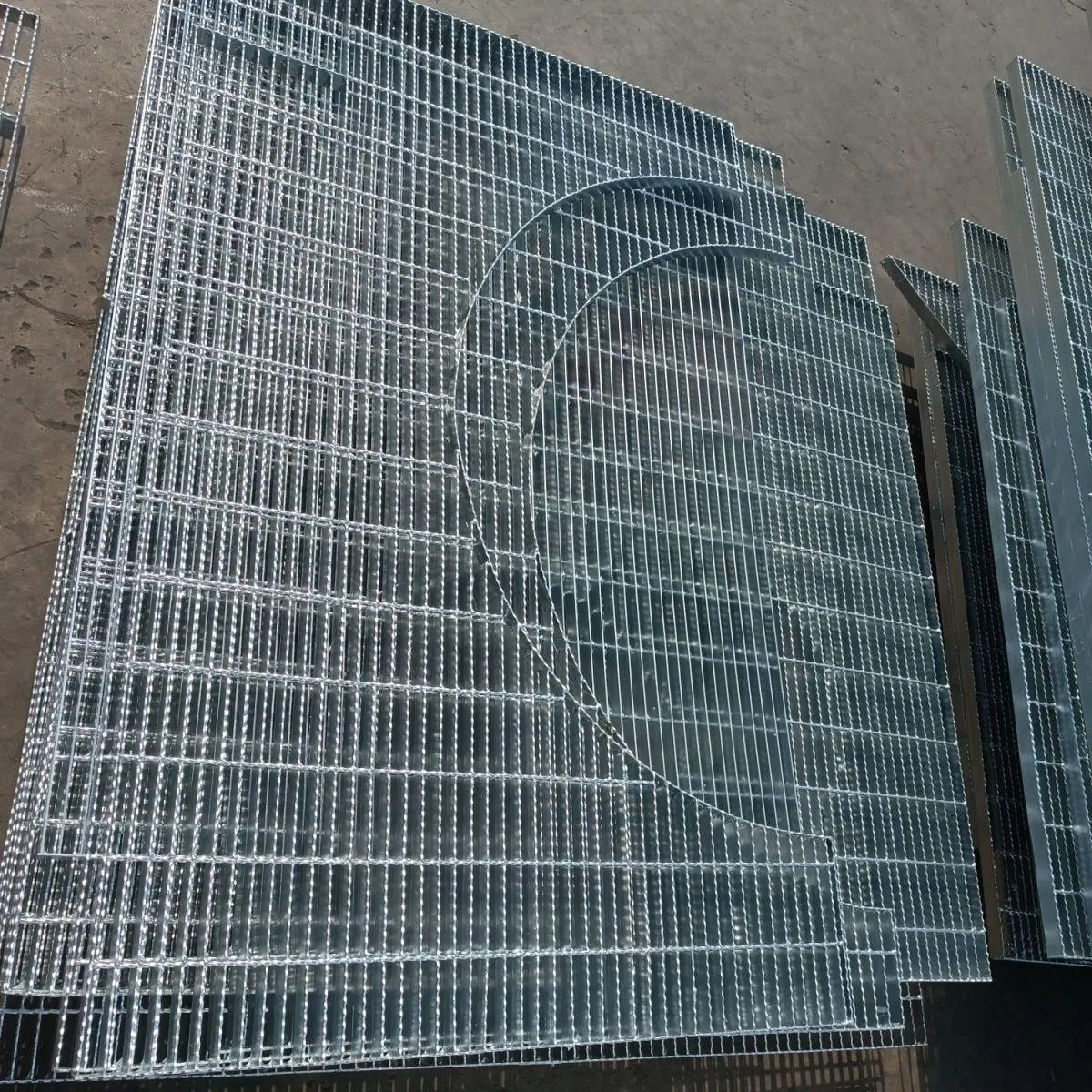

Notched and cut-out panels

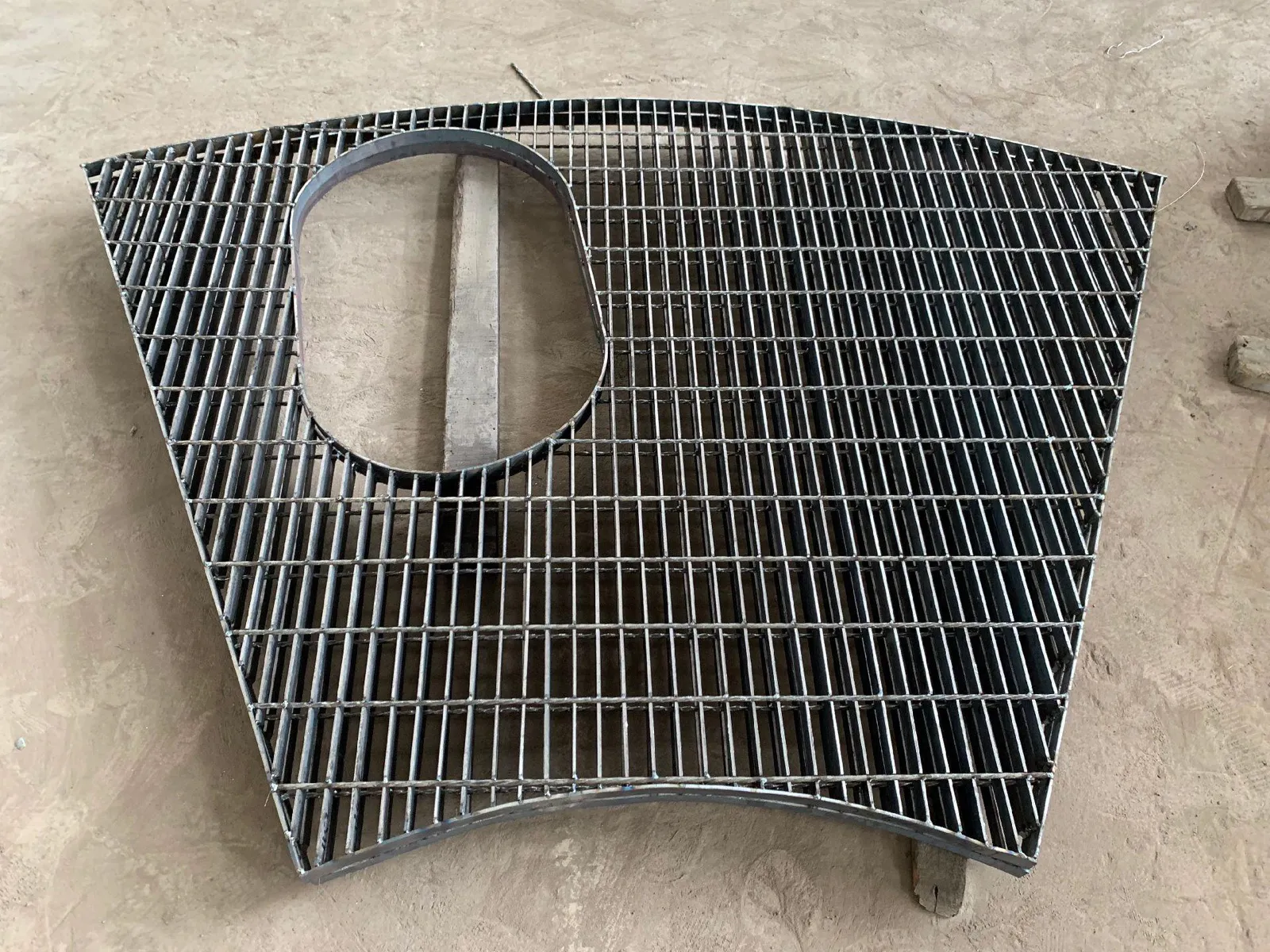

Openings for columns, pipes or equipment are dimensioned, cut and banded to the approved drawing.

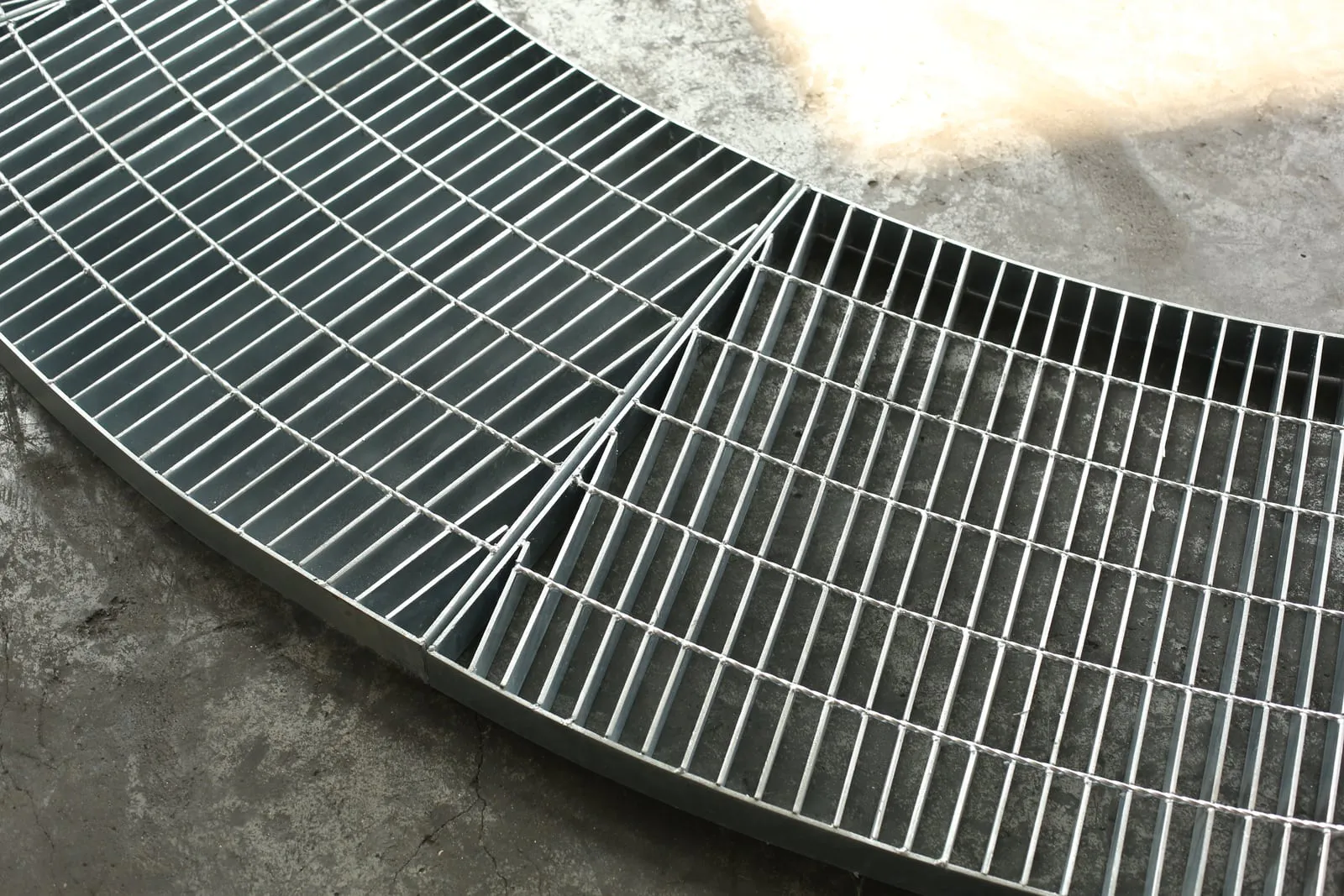

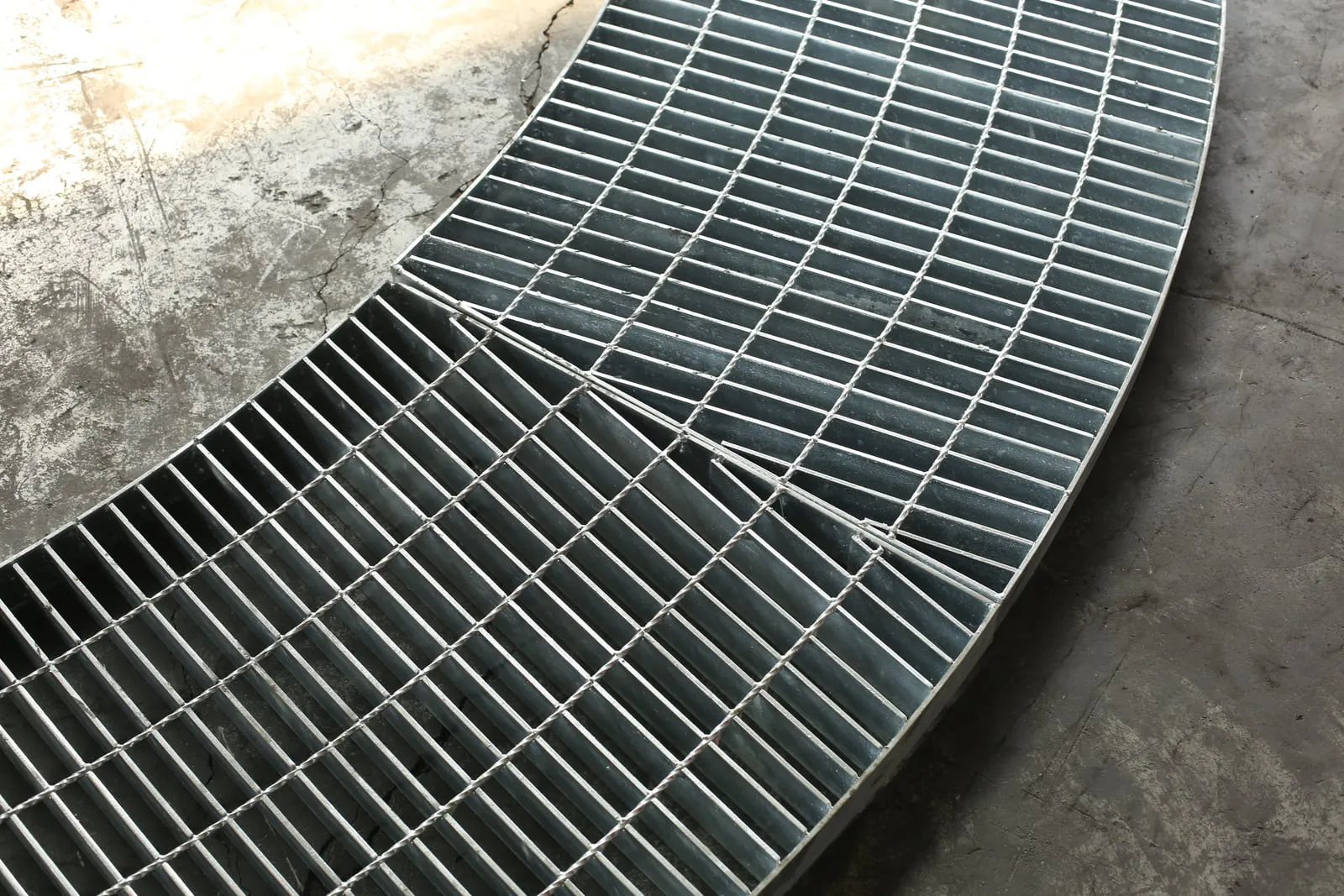

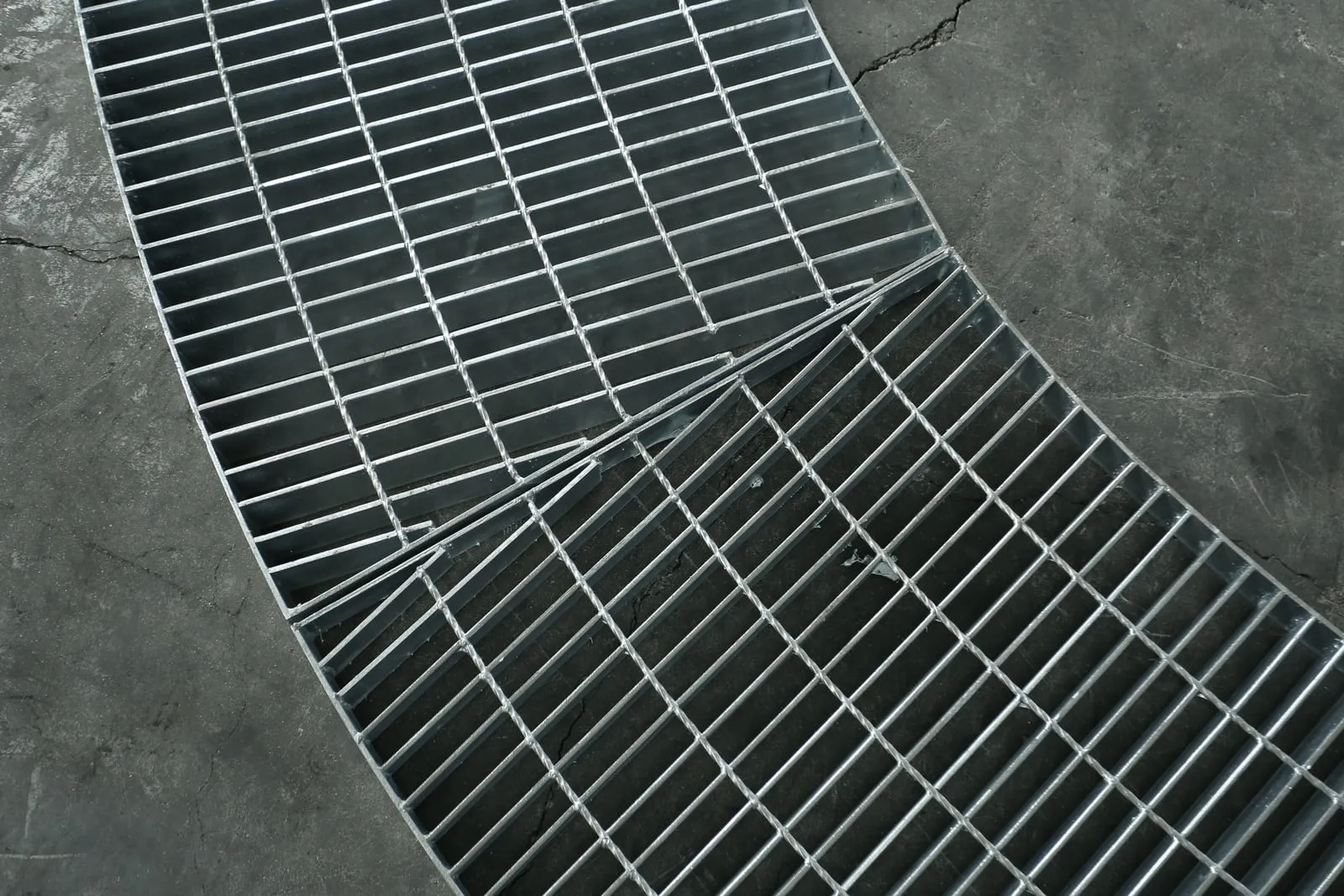

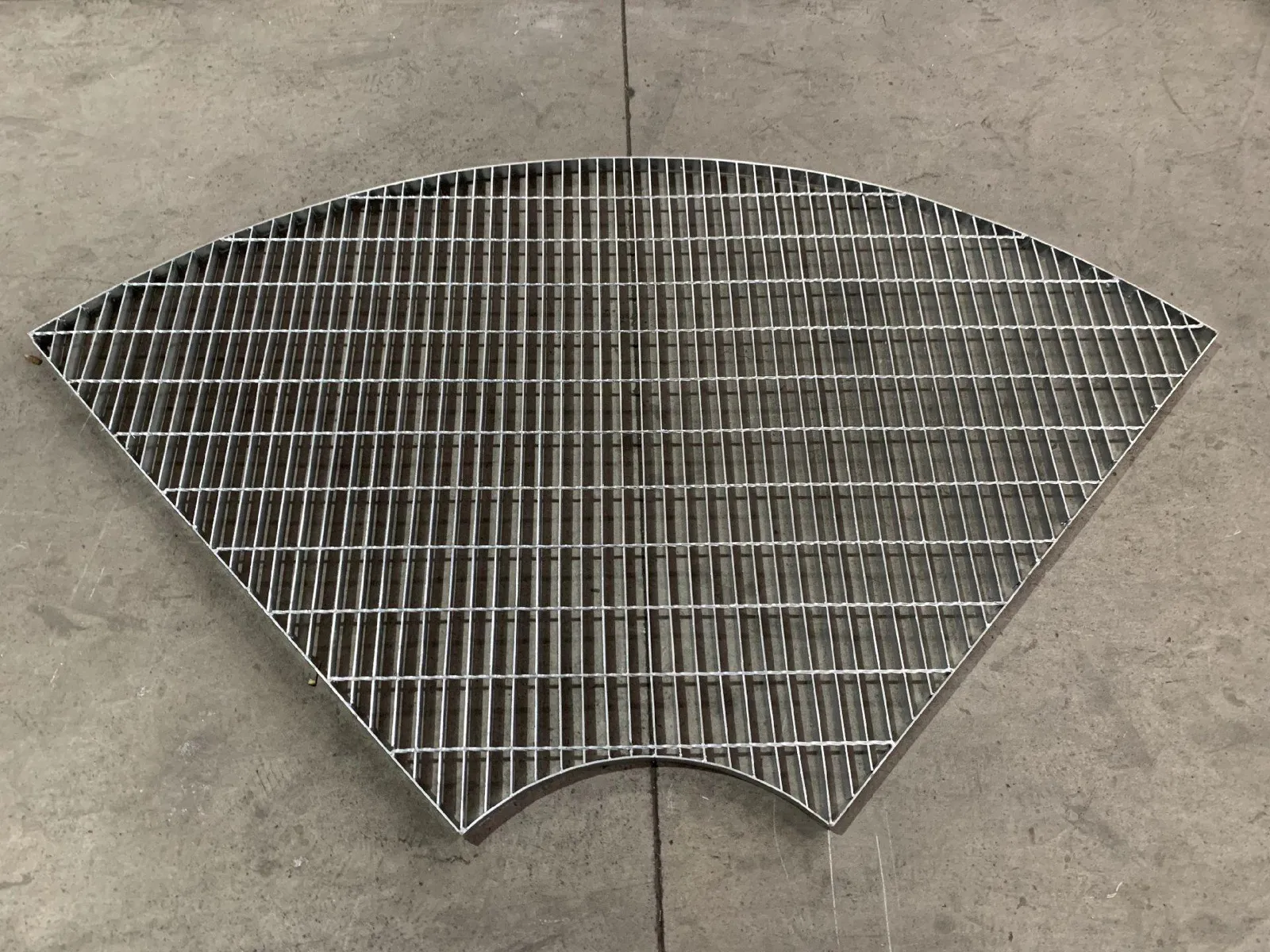

Curved and fan-shaped panels
Arcs and changing widths are divided into practical panel shapes and numbered for site placement.

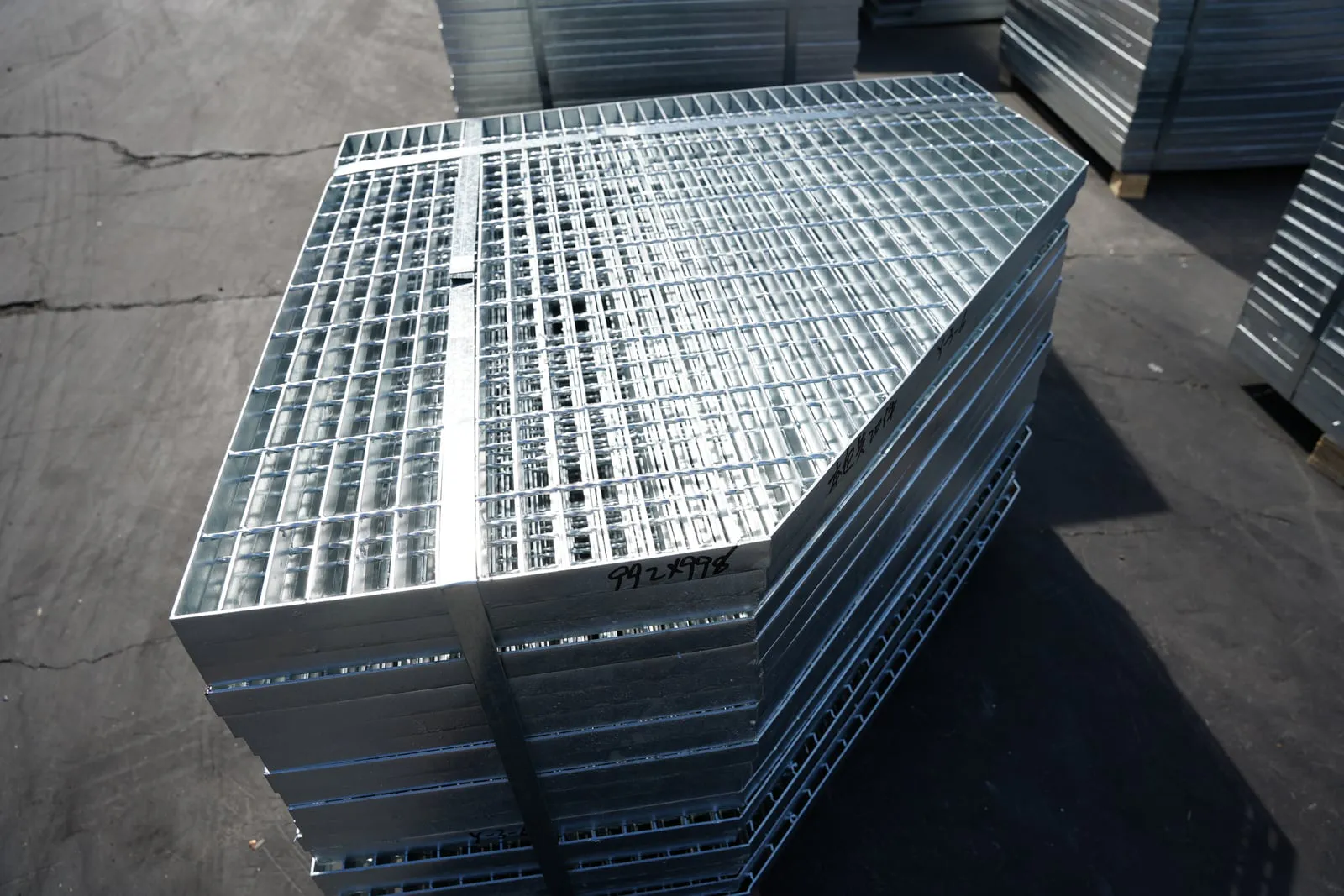

Trapezoidal and transition panels
Non-parallel edges and changes in walkway width are detailed with the bearing direction kept explicit.
Material and finish for one-off panels
Material and finish are selected after the geometry, environment and fabrication route are understood. One-off panels can concentrate welding and cut edges around openings, so the sequence of cutting, banding and finishing is part of the feasibility review.
For hot-dip galvanized carbon steel, all fabrication is completed before coating per ASTM A123 / ISO 1461 or the customer standard. Small openings and narrow clearances can trap or bridge zinc; the minimum workable opening and any split-panel solution are confirmed per project before production.
- Finish the geometry and banding details before surface treatment
- Confirm small openings against fabrication and coating clearance
- Separate panels where one-piece handling or coating is impractical
- Protect stainless and aluminum from carbon-steel contamination
Fabrication & QC
Fabrication & Quality Notes
- Send PDF, CAD or a dimensioned sketch with support steel and bearing-bar direction marked.
- Show every opening, radius, notch, edge condition and required clearance.
- Panel splits, banding, lifting and numbering are returned for approval before fabrication.
- Final dimensions and minimum opening details are confirmed per project.
Packaging
Packaging & Delivery

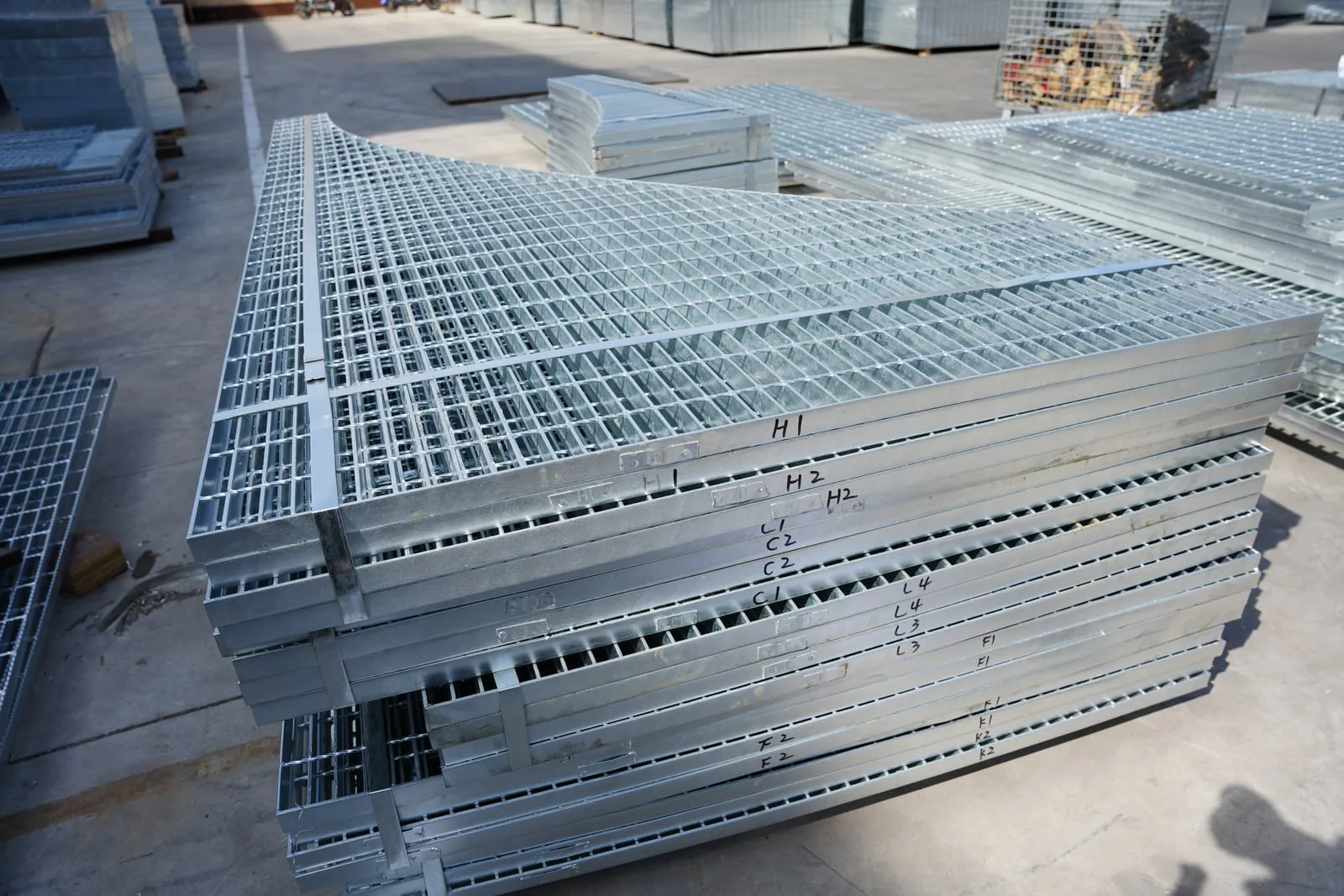

- Each panel is tagged to the approved layout number.
- Irregular edges receive packing protection and panels are bundled in installation sequence.
